What is it:

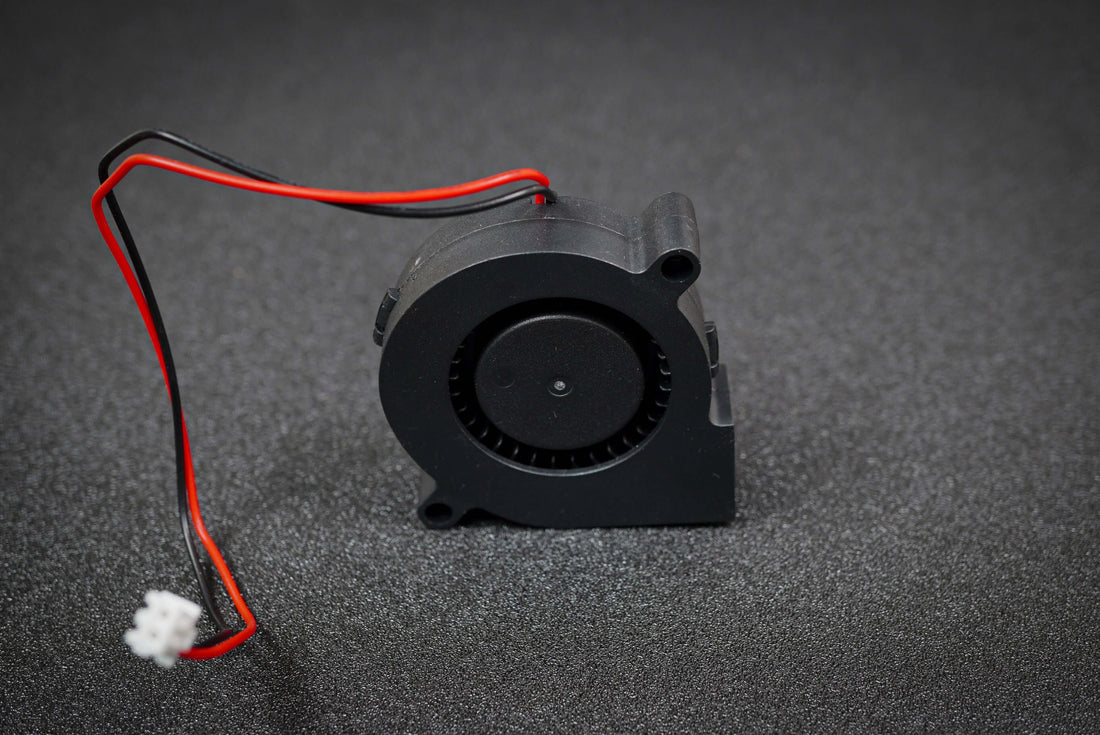

After careful testing and multiple rounds of samples we are ready to release our HoneyBadger P-Series fans. This 5015-blower fan has a durable fan motor and can take a beating on your printer with its Class A insulation rated up to 95C its sure to survive an enclosed environment.
Specs:
PWM version (2 wire)
Construction type: Dual ball bearing
- Construction type: Dual ball bearing
- Operating Voltage: 12~26.5 (VDC)
- Voltage: 24V
- Input Power: 1.68(W)±15%
- Speed: 6400 (RPM) ±10%
- Max Air flow: 4.15 (CFM)
- Max Air Pressure 29.18 (mmH2O)
- Insulation Class A (95℃)
3 wire PWM version (only runs 100% or OFF unless using a 3 wire/pin connector)
- Voltage: 24V
- Operating Voltage: 12~26.5 (VDC)
- Max Air flow: 5.41 (CFM)
- Max Air Pressure: 36.45 (mmH2O)
- Noise: 43.2 (DB)
- Input Power: 2.64(W)±15%Speed: 7300 (RPM) ±10%
- Insulation: Class A (95℃)
- Red is positive, Black is Negative, blue is PWM
-
Construction type: Dual ball bearing

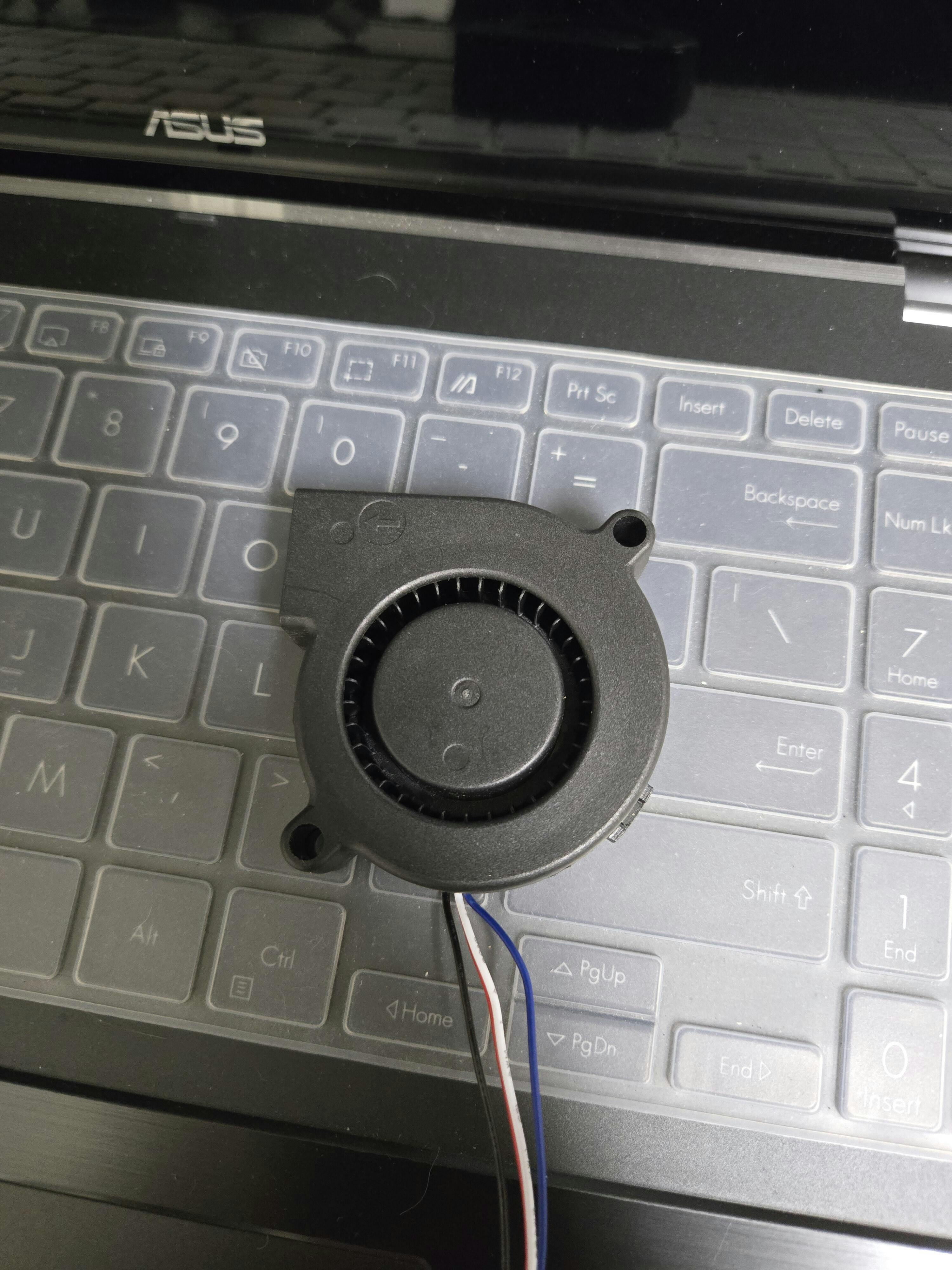

4 wire 9200 rpm 24-28V with tach and pwm
- Operating voltage 12-26.5V 0.19A
- Max RPM 9200 RPM
- Max Flow 5.68CFM
- Max Pressure: 57.4 mmH2O
- noise: 48DB
- Insulation: Class A (95℃)
- Red is positive, Black is Negative, blue is PWM, White is Tach
Backed by our 45-day no questions asked return policy.
I'm very happy with this fan. He's quiet, but he's very revving. Delivery is beyond praise. A couple of days and my order was at the door. Unbelievable. This is my best experience with a store.
Ordered 3 for bed fans and my filter. Have yet to have a Fabreeko fan go bad. They move a lot of air for 6400rpm.
I have these in my ratrig and love them. Combined with at PTC heater in my ratrig 500, they get me to 60C in 20 min! Awesome product!
This thing definitely moves some air. Really appreciate the higher static pressure - I had a slightly higher cfm fan with lower static pressure but it seems like for my setup the static pressure results in more air movement. And a 4 pin tach!
Stop buying fans that make you thing of a calm spring breeze and last about as long. Strap some fabreeko branded war whistles on your rig and actually make air move!
Jokes aside you didn't come to fabreeko for stuff that just works, you came here cause it works great.
